TIP N TELL products manufactured by American manufacturers.

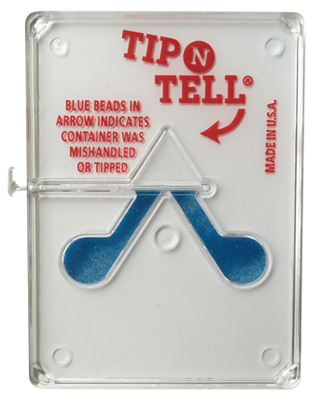

TIP-N-TELL Tilt Indicators can show whether the goods have been tilted, horizontally or upside down during transport or storage,

and constantly monitor whether the goods are stored in accordance with storage requirements,

thereby effectively preventing and reducing the risk of damage to the goods during transport.

(TRB3)

(TCP2)

TIP N TELL Specification

The following requirements shall be met: The length and width are not less than 97mm×71mm

Temperature range: -40℉ ~ 140℉ (-40℃ ~ 60℃)

Monitoring range: 65° in motion, 80° at rest

Activation Angle: ≥40° Tilt indication

Inductive type: Environment-friendly blue powder

Reversal indicator: Yes

Patent number: Yes

180° peel strength (before and after aging): ≥4.5N/cm

Viscosity displacement (before and after aging): ≤2mm

Isolation (t1-t2): 5 ~ 20s

TIP N TELL the scope of application

Anti-tip labeling is a better choice for those who require that the goods must remain upright and intact during transportation,

and always monitor whether the goods are stored in accordance with the storage requirements.

Normal vibrations do not make it work, and even the acute takeoff Angle of the aircraft does not cause activation.

Therefore, most of them are used in defense, military, aerospace equipment, aerospace communications,

aviation network server systems, large precision components, refrigeration equipment, large computer systems,

top-heavy equipment, network information systems, electronic communication equipment, medical equipment,

large glass products, photocopying equipment, photographic equipment, television, computers, DV, audio equipment,

automotive engines and zero Parts, furniture, lighting, pharmaceuticals, biological products, blood banks, chemicals,

developers, heavy machinery, circuit boards, large batteries, large switch cabinets, hydraulic presses and other product hosts

in the transport of goods that have strict requirements for storage location and placement direction.

TIP N TELL how to use it

Each set of anti-tipping labels consists of three parts: anti-tipping label, warning sticker and shipping slip sticker.

The "anti-tipping label" should be affixed to the transport document to show that the transport company and

the consignee notice that the goods to be transported have been affixed with the "anti-tipping label",

the warning sticker should be affixed to the most prominent place of the goods to warn,

and the "anti-tipping label" itself can be affixed to the outside or inside of the goods to be transported.

A single sheet of paper can be removed from the back of each piece of anti-tipping label,

and then the anti-tipping label can be affixed to the shipped goods.

Pull out the small wire piece to the left of the anti-tilt label, and the anti-tilt patch will start to activate,

and test whether the goods are tilted. Because the anti-tipping label is a one-time use,

be sure to pay attention to not easily pull out the small iron sheet before completely attaching to the goods,

so as to avoid failure. Attach to the top left or top right corner of the package when posted.

TIP N TELL packing

Anti-tilting label with carton as the outer packaging, 100pcs/ box as the minimum unit, and then 12 boxes into a large box.

The outside of the case is marked with anti-tipping label, which clearly indicates the product type.

TIP N TELL transport

Try to put the anti-tipping label into the original box for transportation, and keep the product tightly fitted during packaging.

TIP N TELL warehousing

· Please store at room temperature and keep the place clean to ensure that the adhesive on the back has enough viscosity;

· Do not easily pull out the small wire piece on the left side of the anti-tilting label to keep the product intact;

  Once the left small wire piece is pulled out, the product will be activated at any time;

· Please use within the effective life: anti-tipping label is two years.
